| Code: | E-6 E-8 E-12 E-16 |  |

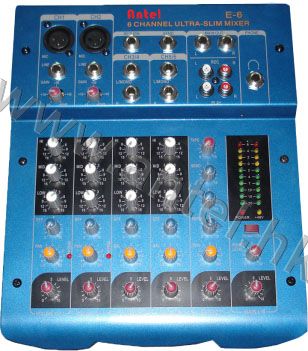

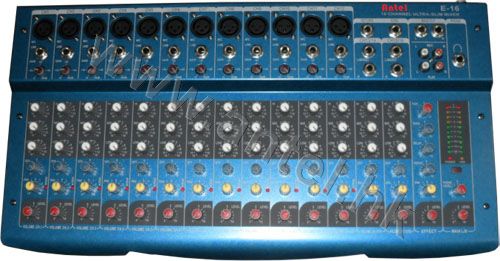

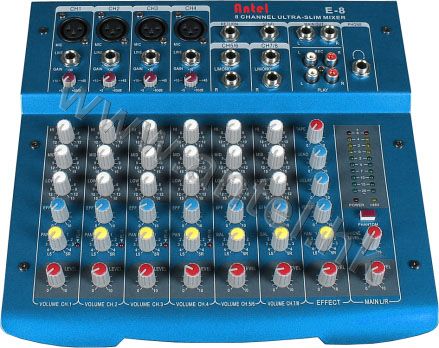

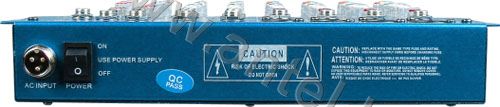

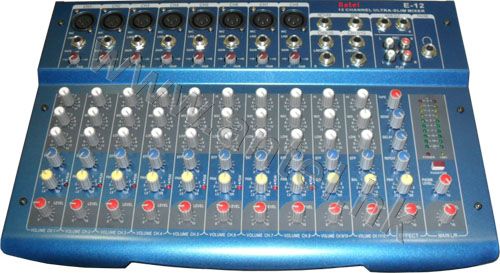

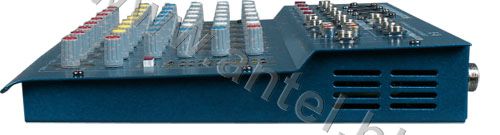

| Name: | Audio mixer E series |
 |
Features:
●
●Mono input channels with gold plated XLRs balanced line inputs
●Ultra-low noise discrete MIC preamps with 48V phantom power
●Extremely high headroom offering more dynamic range
●Balanced inputs for highest signal integrity
●Build in digital multi(16 DSP)
●Ultra-musical 3-band EQ on all channels
●Peak LEDs in all mono channels
●1 AUX send per channel for external effects and monitoring
●Master Mix output and REC output
●Highly accurate 10 segment bargraph meters
●Separate master Mix outputs
Specifications:
| Model | E-6/8/12/16 |
| Channel MIC/line | 6/8/12/16CH |
| THD | ≤0.01% |
| Frequency Response | 20Hz-20kHz±3dB |
| S/N Ratio | ≥112dB |
| Max Output | 4V Max |
| Input Sensitivity | Mic-60dB |
| Line-40dB | |
| Aux-22dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | |
| Phantom Power | 48V |
| Effector | Echo |
| Output Power | No |
| Power Supply | AC 220V 50Hz |
