| Code: | PHM-2000 PHM-2000V |  |

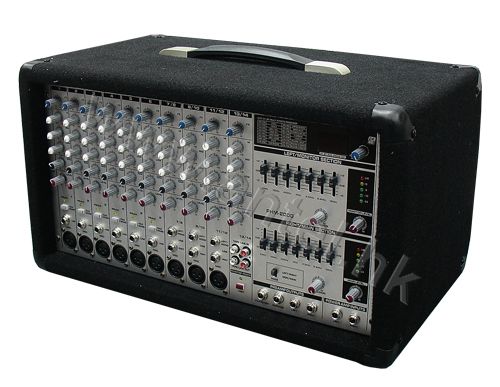

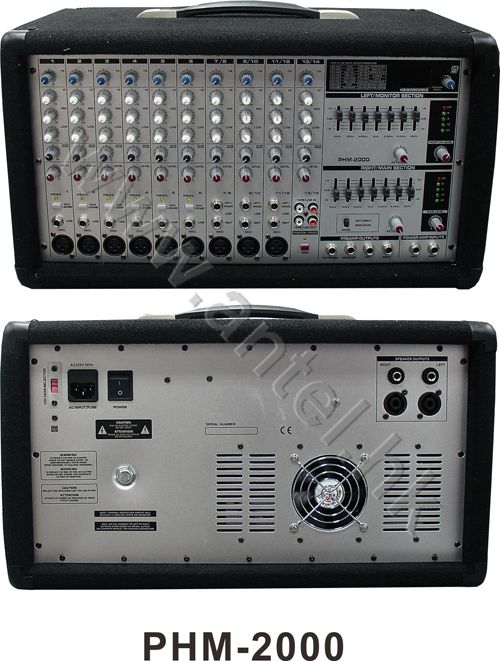

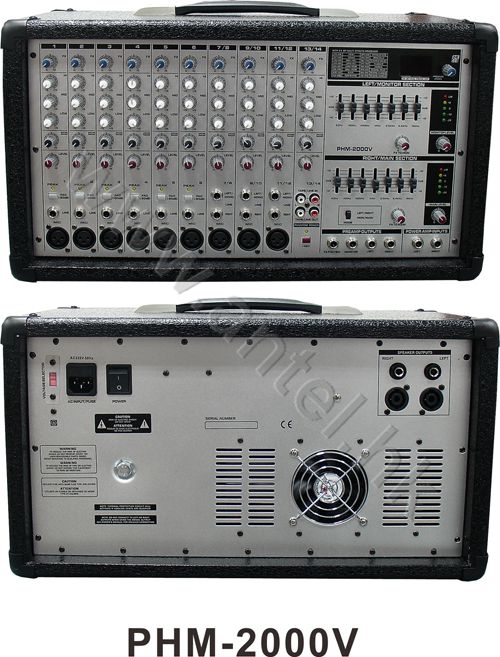

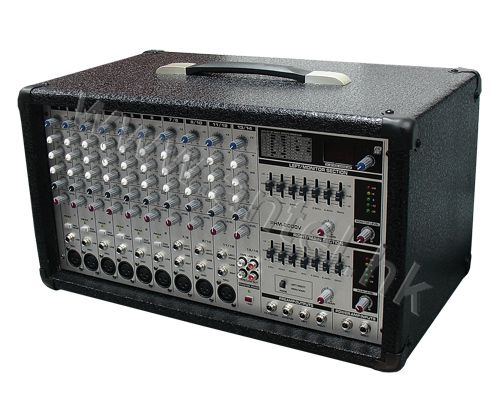

| Name: | Professional mixer with amplifier |
 |
Features:
| ● 2*250W power amplifier with full protection |
| ● Ultra-low noise ULN design, high headroom, ultra-transparent audio |
| ● 10-channel mixer section features 6 mono and 3 stereo channels plus separate tape returns |
| ● Switchable +48 V phantom power for condenser microphones |
| ● Effective, extremely musical 3-band EQ, switchable Pad and Peak LEDs on all mono channels |
| ● 7-band stereo graphic EQ ensures precise frequency correction of monitor and main mixes |
| ● 24bit-100DSP digital effect |
| ● Main level and Monitor level controls with precise, 5-segment LED level display |
| ● Optional stereo (main L/R) or double mono (main/monitor) operation possible |
| ● Multi-functional stereo pre-amp outputs and stereo power amp inputs for additional flexibility |
| ● High-quality components and exceptionally rugged construction ensure long life |
Specifications:
| MODEL | PHM-2000 | PHM-2000V |
| Channel Mic/line | 14CH | 14CH |
| THD | ≤0.001% | ≤0.001% |
| Frequency Response | -1dB 10Hz~100KHz | -1dB 10Hz~100KHz |
| S/N Ratio | ≥110dB | ≥110dB |
| Max Output Level | +21dBu | +21dBu |
| Input Sensitivity | Mic -122dB | Mic -122dB |
| Line -30dB | Line -30dB | |
| EQ Parameter | Hi ±15dB/6kHz | Hi ±15dB/6kHz |
| Mid ±15dB/700Hz | Mid ±15dB/700Hz | |
| Low ±15dB/60Hz | Low ±15dB/60Hz | |
| Phantom Power | +48V | +48V |
| Effector | 24bit-100DSP | 24bit-100DSP |
| Output Power | 2*250W 4Ω | 2*250W 4Ω |
| Power Supply | AC220V 50Hz | AC220V 50Hz |
