| Code: | SNC-RKNUS-150WV1 |  |
| Name: | LED Retrofit Kits |
 |
Advantages:
| 1) | UL cUL DLC CE RoHS certificate |
| 2) | CREE Chip, SUNON fan |
| 3) | High CRI |
| 4) | Mean Well IP65 driver, Input voltage 100-277VAC |
| 5) | No UV or IR in the beam |
| 6) | Easy to install and operate |
| 7) | Energy saving, long service life |
| 8) | Light is soft and uniform, safe to eyes |
| 9) | Instant start, NO flickering, NO humming |
| 10) | Green and eco-friendly without mercury. |
Application:
| 1) | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires; |
| 2) | High-Bay Luminaires for Commercial and Industrial Buildings; |
Product Specifications:
| Product name | LED Retrofit Kits |
| Part No | SNC-RKNUS-150WV1 |
| Light Type | Retrofit Kits |
| Dimension | (325-355)*182*(130-160)mm 265*182*(225-295)mm |
Technical Characteristic:
| Color temperature | 4000K | 4500K | 5000K | 5700K |
| CRI | >70 | |||
| Lumen | 14500-17200LM | |||
| Input Power | 150W | |||
| Viewing Angle | 120Degree | |||
| Input Voltage | 100-277VAC 50/60Hz | |||
| Driver model | HLG-150H-24A ( Mean Well Driver ) | |||
| PFC | >0.9 | |||
| Equivalent | 1200W incandescent / 350W CFL | |||
| Waterproof Rating | IP40 | |||
Materials:
| LED Brand | CREE |
| LED Type | XTE, 1 - 5W |
| LED QTY | 77 PCS |
| Housing | Aluminum |
| Housing color | Gray |
Others:
| Operating Temperature | -20℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -30℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires High-Bay Luminaires for Commercial and Industrial Buildings |
| Safety Certification | UL、cUL、DLC、CE、RoHS |
| Warranty Time | 6 Years |

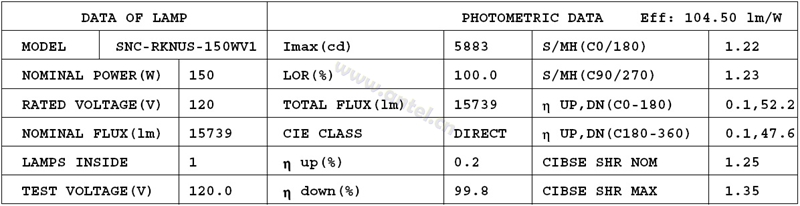

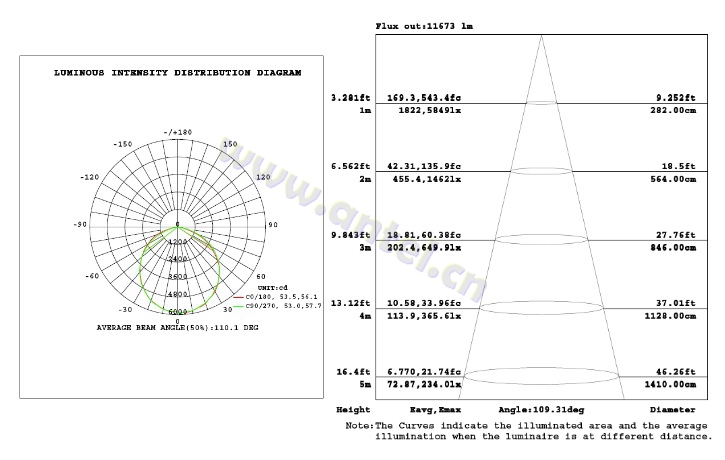

Light Distribution Testing Parameters:
Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| inner box | 41*29*16cm | 1 | 4.5kg | 3.7kg |
| Outer box | 65*42*31cm | 4 | 19kg | 14.8kg |
Notice For User:
| 1) | Please turn off power before install or change assembly parts. |
| 2) | The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated. |
| 3) | No-professionals, must not install and disassemble the lamps. |
Trouble Shootings:
| Troubles | Check points |
| Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
| Out of working | Please check the connection |
