| Code: | ANT-746R1-3.6 |  |

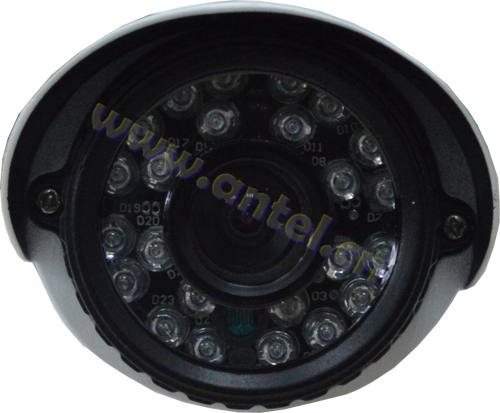

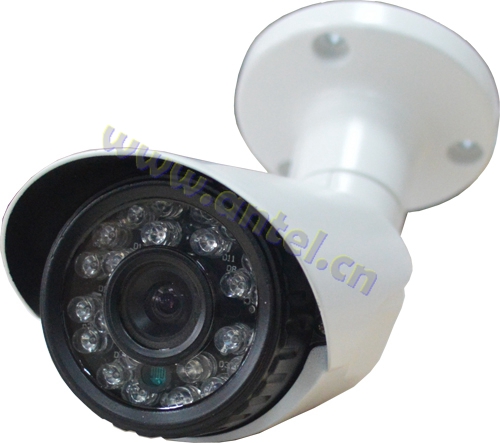

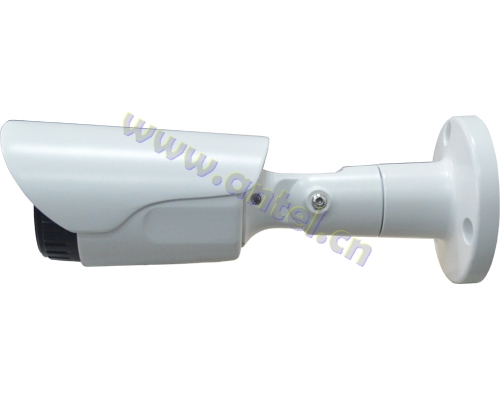

| Name: | AHD Camera CMOS 1.0M 15~30m IR Led f=3.6mm |
 |
Specifications:
| Model | ANT-746R1-3.6 |
| Image Sensor | 1/4" AR0141 CMOS |
| TV System | PAL / NTSC |
| Total Pixels | 1280(H) X 720 (V) |
| Horizontal Resolution | 1.0 Mega pixel |
| Mini Illumination | 0.1 Lux IR ON |
| Video Output | 1.0Vp-p Composite, 75Ω (BNC) |
| S/N (Y Singal) | 48dB (Min)/52dB (Max) (AGC off) |
| Gamma Correction | 0.45 |
| LED & IR Distance | 24pcs Array LED (<2Lux LED ON, >5Lux LED OFF) 15~30m IR Distance |
| Sync. System | Internal |
| Day & Night Mode | Color (Day: Color Night: Black&White) |
| Electronic Shutter | Auto |
| White Balance | Auto |
| Lens | 3.6mm/6mm Lens (Optional) |
| Protection Grade | IP65 |
| Power Supply | DC12V±10% |
| Operating Temperature | -10℃ to +50℃, RH 80% Max |
| Storage Temperature | -20℃ to +60℃, RH 90% Max |
| Dimensions | 180mm(L)*62mm(W)*63mm(H) |
| Weight | 268g |
