| Code: | ANT-361M1-3.6 |  |

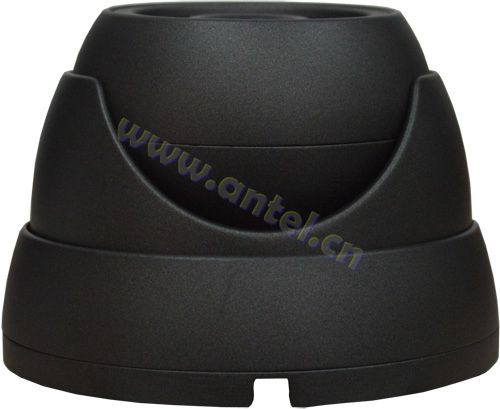

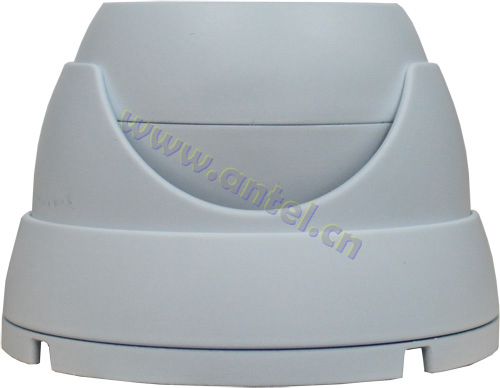

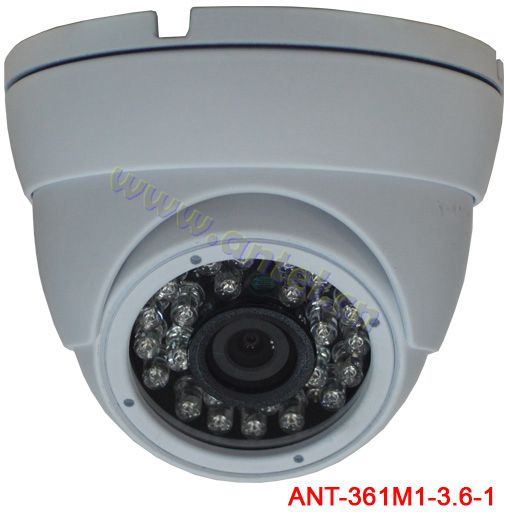

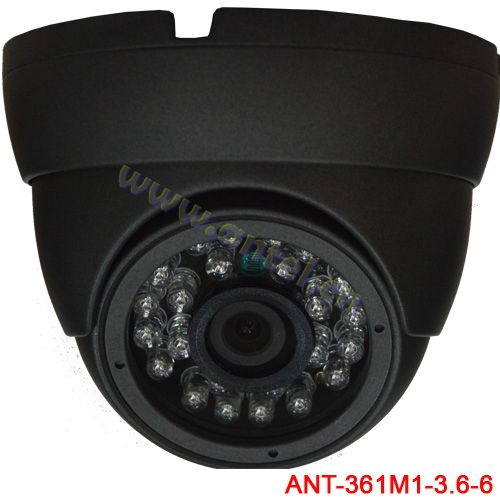

| Name: | AHD dome camera1.0M 15~30m IR f=3.6 |
 |
Specifications:
| Model | ANT-361M1-3.6 | |
| Image Sensor | 1/4" OV9712 CMOS | |
| TV System | PAL / NTSC | |
| Total Pixels | 1.0 Mega pixel | |
| Mini Illumination | 0.1 Lux IR ON | |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) | |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) | |
| Gamma Correction | 0.45 | |

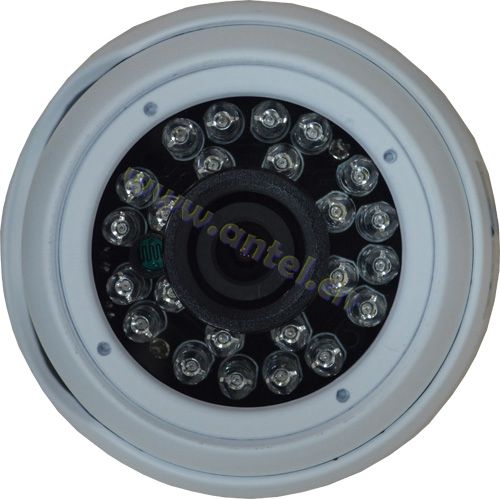

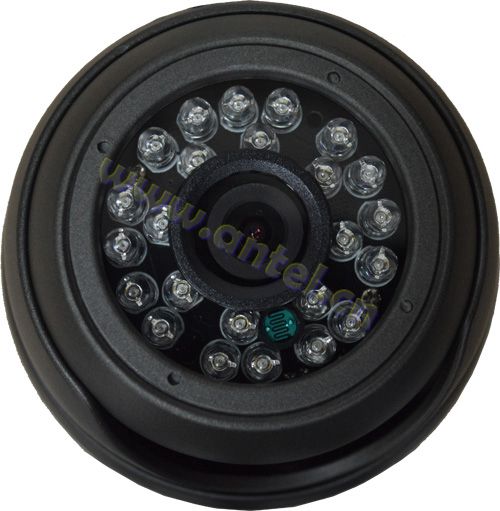

| LED & IR Distance | 24pcs LED ( <2Lux LED ON, >5Lux LED OFF ) 15~30m IR Distance | |
| Sync. System | Internal | |
| Day & Night Mode | Color (Day: Color, Night: Black&White) | |
| Electronic Shutter | Auto | |
| White Balance | Auto | |
| Lens | 3.6mm/6mm Lens（Optional) | |
| Protection Grade | IP65 | |
| Power | DC12V±10% | |
| Operating Temperature | -10℃ to +50℃, RH 80% Max | |
| Storage temperature | -20℃ to +60℃, RH 90% Max | |
| Dimension | 92mm(Φ)*62mm | |
| Weight | 275g | |
