| Code: | ANT-514A-6 / ANT-514D-6 |  |

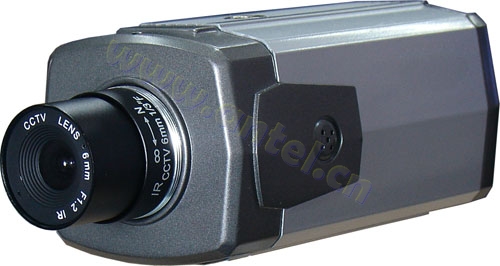

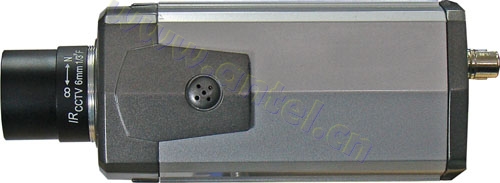

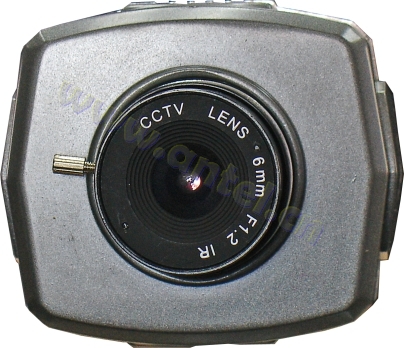

| Name: | Box camera, CCD, silver/grey cabinet |
 |
 Specifications: |
||
| Model | ANT-514A-6 | ANT-514D-6 |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony CCD |
| Horizontal Resolution | 420TV Line | 480TV Line |
| System | PAL:500(H)×582(V) | PAL:752(H)×582(V) |
| NTSC:510(H)×492(V) | NTSC:768(H)×492(V) | |
| Minimum Illumination | 0.1 Lux (F=1.2) | |
| Lens | 6mm (4mm,8mm ) | |
| Backlight Compensation | On | |
| Distance | 30 meter | |
| Electronic Shutter | PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec | |
| Lens Angle | 83°~36° | |
| BLC | On | |
| White Balance | Auto | |
| S/N Ratio | >48dB | |
| Gamma | >0.45 | |
| Operation Temperature | -10℃~+60℃ (Relative Humidity 95% max.) | |
| Storage Temperature | -20℃~+50℃ (Relative Humidity 95% max.) | |
| Video Output | BNC 1.0VP-P, 75Ω | |
| Power Supply | DC12V±5% | |
| Dimensions | 140×63×55mm（L×W×H） | |
| Weight | 413g | |
