| Code: | ANT-628 |  |

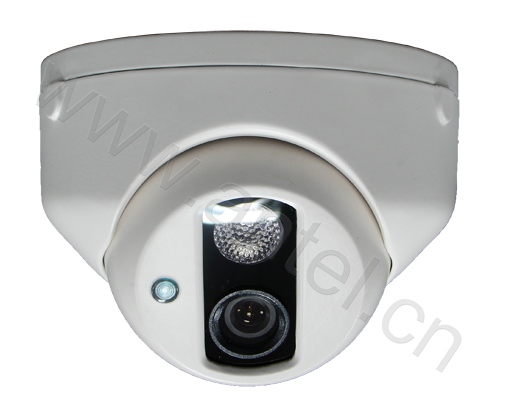

| Name: | 1200TVL HR Dome Camera, High Power IR, Aluminum Case |
 |
Specification:
| Model | ANT-628 |
| Image Sensor | 1/3" Sony CMOS |
| TV System | PAL / NTSC |
| Total Pixels | 1080(H) X 960 (V) |
| Horizontal Resolution | 1200TVL |
| Mini Illumination | 0.1 Lux IR ON |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) |
| Gamma Correction | 0.45 |
| LED & IR Distance | 1pc Array LED ( <2Lux LED ON, >5Lux LED OFF ) 60m IR Distance |
| Electronic Shutter | Auto |
| White Balance | Auto |
| Lens | 3.6mm/6mm Lens（Optional) |
| Power | DC12V±10% |
| Operating Temperature | -10℃ to +50℃, RH 80% Max |
| Storage temperature | -20℃ to +60℃, RH 90% Max |
| Dimension | 110mm(Φ)90(H)mm |
| Weight | 570g |
