| Code: | IP-8610EB-3.6 |  |

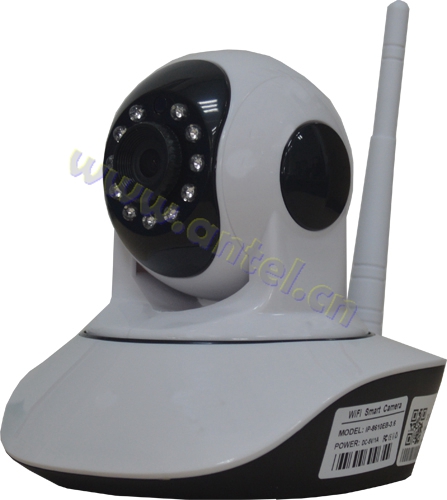

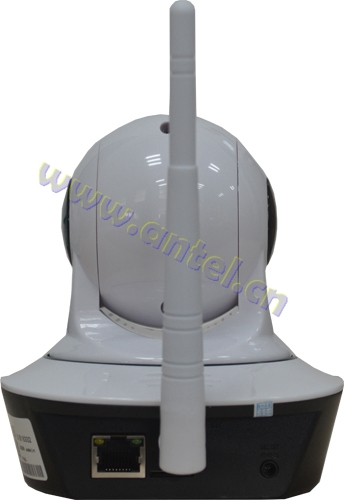

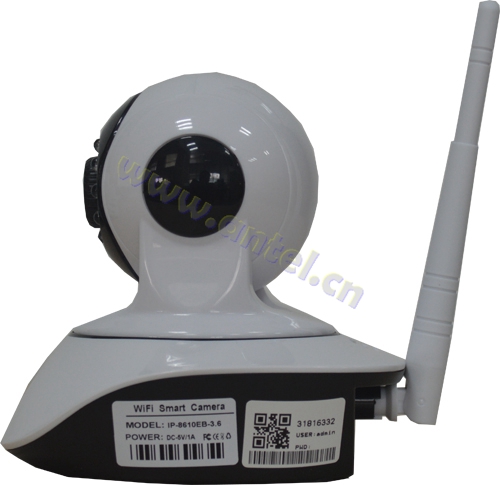

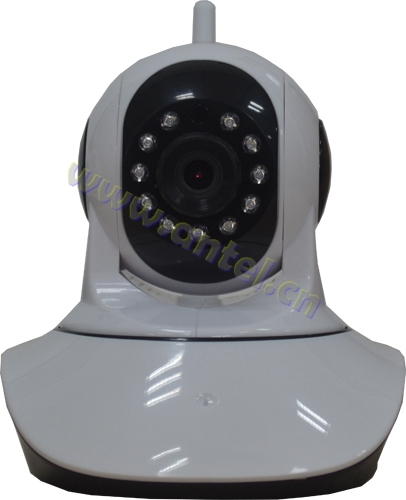

| Name: | wireless IP Camera 1.0 M pixels H.264 format f=3.6 |
 |
Specifications:
| CPU | Operation system | Embedded Linux OS |
| Microcomputer processor | 32Bit RSIC Embedded Processor | |
| Video | Compression format | Motion-JPEG-N |
| Signal system | CMOS 1.0 Mega pixels | |
| Frame rate | 25fps | |
| Resolution | 1140*900 | |
| Video adjustment | Brightness, contrast, chroma, saturation. | |
| Minimum illumination | 0.1 Lux | |
| S/N ratio | >48dB | |
| Shutter speed | 1/50s(1/60s) ~ 1/100,000 s | |
| WB, BLC | Auto | |
| Lens | Standard: 3.6mm | |
| Night vision | Nightvision | 11Φ5mm LED IR distance: 5~10m |
| Audio gain | Audio AGC | |
| Audio | Processor | Built-in two-ch audio |
| Audio gain | AGC | |
| P/T | Motor | Built-in motor control |
| Rotation angle | Horizontal: 355° Vertical: 120° | |
| Network | Network interface | WIFI；RG4510/100Mb self-adaptable Ethernet slot |
| Protocol | Support TCP/IP、HTTP、ICMP、DHCP、FTP、SMTP、PPPoE etc. | |
| Wireless | WIFI, 802.11 b/g | |
| IP mode | Dynamic IP address, PPPOE | |
| Others | Shape | Cartoon robot |
| Use of environment | Indoor use | |
| Power Supply | DC5V 2A | |
| Temperature | -10~50 °C | |
| Humidity | 95% RH | |
| Dimensions | 125*115*118mm | |
| Weight | 255g |
