| Code: | IP-4602-3.6 |  |

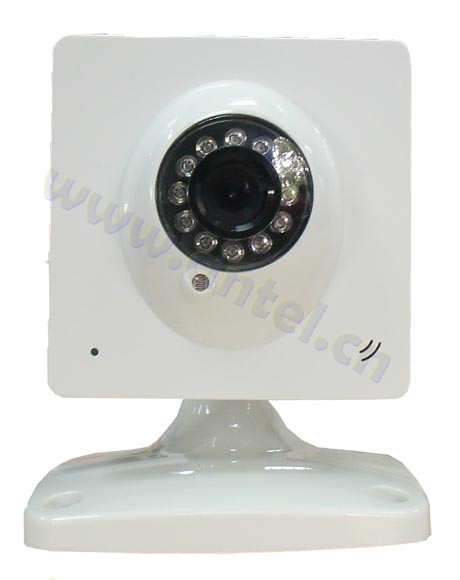

| Name: | Wireless IP camera, M-JPEG, 300,000 pixel |
 |
Functions:
● 300,000 pixels CMOS sensor, F=2.0 f=3.6mm
● M-JEPG compression format, support VGA/QVGA/QQVGA
● Wi-Fi, 802.11 B/G, Support both wired and wireless
● 12pcs IR led, night vision of 5-10m
● Support 3 level user authorites
● With manufacturer DDNS to directly view via browsers
● Free 64-CH CMS for multi-view
● Free mobile view software support Java, iPhone, BlackBerry, Android.
Specifications:
| Item | Sub Item | Description |
| Image Capture | Sensor | CMOS sensor |
| Total of pixel | 300k | |
| Minimum illumination | IR on，0 Lux | |
| Lens | f=3.6mm, F=2.0, Fixed Iris | |
| Assistant | Lighting | 12pcs 850nm Infrared LEDs, 5m distance |
| Lighting Control | Auto control | |
| Video and Audio | Resolution | 640*480(VGA)/320*240(QVGA)/160*120(QQVGA) |
| Compression | MJPEG | |
| Frame rate | 30fps | |
| Bit rate | 128kbps ~ 5Mbps | |
| Image Rotation | Mirror /Flip | |
| Audio Compression | ADPCM | |
| Network | Basic Protocol | TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP、NTP、PPPOE |
| Other Protocol | 802.11b/g | |
| Other Features | Video control | support |
| Dual way audio | support | |
| Motion Detection | support | |
| Triggered Actions | Email/FTP/ send message to alarm server | |
| User Setting | Three levels | |
| Date/ Time Setting | support | |
| Upgrade | Upgrade from network | |
| DDNS | A free DDNS provided by manufacturer | |
| Hardware Interface | Ethernet | 10Base-T/100base-TX |
| Audio In | Internal mic | |
| Audio Out | Audio Line-out interface x 1 | |
| Physical Index | Weight | 120g |
| Main body | 48mm(L)*85mm(W)*110mm(H) | |
| Power | DC 5V | |
| Power consumption | <6W | |
| Operating temperature | -20℃~50℃ | |
| Operating Humidity | 10% ~ 80% non-condensing | |
| Software(PC Side) | OS Supported | Windows 98/2000/XP/Vista/ Win 7 etc. |
| Browser | IE 6.0 and Above or Compatible Browser, Firefox, Safari etc. | |
| Application Software | IPCMonitor.exe |
