| Code: | IP-3002-4 |  |
| Name: | Wireless IP camera, H.264/M-JPEG, 300,000pixel, scanner motor |
 |
Specifications:
| Item | Sub item | Description |
| Image Capture | Sensor | 1/4" CMOS sensor |
| Total of pixel | 300k | |
| Minimum illumination | IR lights on，0 Lux | |
| Lens | f=4.0mm, F=2.0, Fixed Iris | |
| IR_CUT | Support IR and color filter change automatically | |
| Pan/Tilt | Pan Coverage | 350° |
| Tilt Coverage | 100° | |
| Preset Numbers | 1 | |
| Assistant | Lighting Control | Auto/manual control |
| Lighting | 8pcs 850nm Infrared lights, 5m distant | |
| Video and Audio | First Stream Resolution | VGA/QVGA/QQVGA |
| Second Stream Resolution | QVGA/QQVGA | |
| Compression | H.264/JPEG | |
| Frame rate | 30fps | |
| First Stream Bit rate | 90kbps ~ 2.048Mbps | |
| Second Stream Bit rate | 90kbps ~ 512kbps | |
| Image Rotation | Flip / Mirror | |
| OSD | support | |
| Audio Compression | G.711/G.726 | |
| Network | Basic Protocol | TCP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP、NTP |
| Other Protocol | 802.11b/g/n | |
| Other Features | Mobile Phone View | support |
| Video control | support | |
| Dual way audio | support | |
| Memory | Snap or video into SD card | |
| Browser SD card | View or download from network | |
| Motion Detection | yes( 4 zone detection ) | |
| Triggered Actions | Email/FTP/SD storage/external alarm/send message to alarm server | |
| User Setting | Three levels | |
| Date/ Time Setting | support | |
| Upgrade | Upgrade from network | |
| DDNS | A free DDNS provided by manufacturer | |

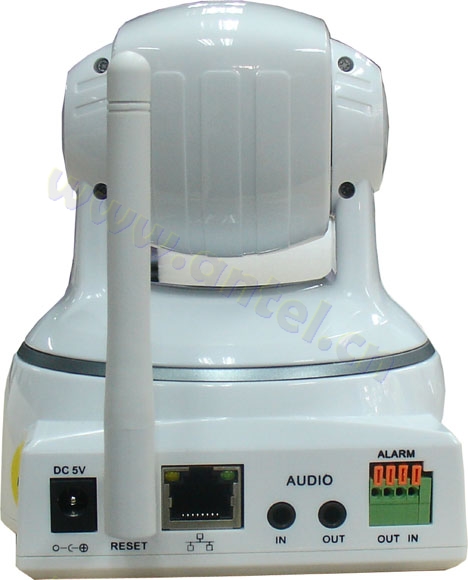

| Hardware Interface | Ethernet | 10Base-T/100base-TX |
| Memory | SD Slot | |
| Alarm In | 1 way | |
| Alarm Out | 1 way | |
| Audio In | Internal mic x 1, audio input interface x 1 | |
| Audio Out | audio output interface x 1 | |
| Physical Index | Weight | 358g |
| Main body | 111mm(L)*107mm(W)*121mm(H) | |
| Power | DC 5V | |
| Power consumption | <6W | |
| Operating temperature | -20℃~ 50℃ | |
| Humidity | 10% ~ 80% non-condensing | |
| Software(PC Side) | OS Supported | Microsoft Windows 98/2000/XP/Vista etc. |
| Browser | Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc. | |
| Application Software | IPCMonitor.exe |
