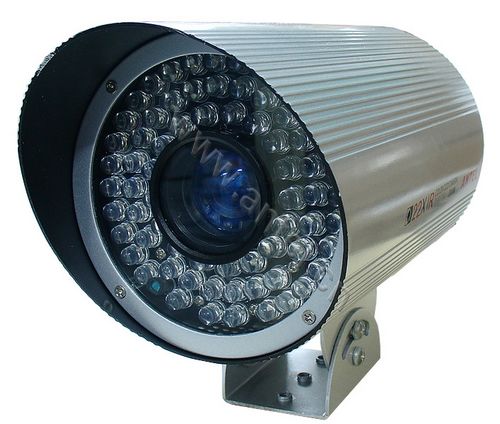

| Code: | ANT-582 |  |
| Name: | silver color 195*110*150mm, 1580g, 1pc/gift box |
 |
| Specifications: | ||
| Image Sensor: |
1/4" Sharp CCD |
1/3" Sony CCD |
| Horizontal Resolution: |
420TV Line |
480 TV line |
| System: |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
PAL:752(H)×582(V) NTSC:768(H)×492(V) |
| Mini Illumination: |
0 Lux (F=1.2) |
|
| IR Status: |
under 10Lux by CDS(<10 Lux CDS on) |
|
| White Balance: | Auto | |
| BLC: | Auto | |
| AGC: | Auto | |
| Electronics Shutter: |
PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec |
|
| IR Led: |
Ф10mm 36pcs |
|
| Distance: |
80 meter |
|
| Lens: |
Standard 6mm~12mm Optional 3.6mm,16mm |
|
| S/N Ratio: |
>50dB |
|
| Water Proof: |
IP66 |
|
| Optical Zoom: | 16x f=8mm~51mm | |
| Operation Temperature: |
-10℃~ +60℃ (Relative Humidity 95% max.) |
|
| Storage Temperature: |
-20℃~ + 50℃ (Relative Humidity 95% max.) |
|
| Video Output: |
BNC 1.0VP-P, 75Ω |
|
| Power Supply: |
DC12V±5% |
|
| Power Consumption: |
100mA |
|
