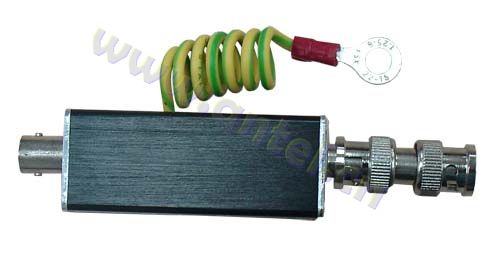

| Code: | BOS06B/JKM |  |
| Name: |
 |
Functions:
| The video surge proctector provides lightning and surge protection in data transmission via the wired coaxial communications systems. |
| And avoide damage causing by over-voltage lightning, induced overvoltage and electrostatic discharge. |
| It is suitable for railway communication systems, mobile base station, transponder stations, wired CCTV, CATV, public television monitoring system, satellite TV receiver systems, as well as video-on-demand system, etc. |
Features:
| 1. Using multi-level protection circuit, low level of residual pressure, good protective effect. |
| 2. Imported core components with execellent performance. |
| 3. Large flow capacity, rapid response |
| 4 Stable and reliable performance. |
| 5. Easy to use, no maintenance needed. |
Specifications:
| Model | BOS06B/JKM |
| Continuous operating voltage Un | 5V |
| Maximum operating voltage Uc | 10V |
| Nominal discharge current In (8/20us) | 5KA |
| Restricted voltage Up | 15V |
| Data transmission rate Vs | 10Mbps |
| Insertion loss Ae | 0.2dB |
| Response time Ta | 1nS |

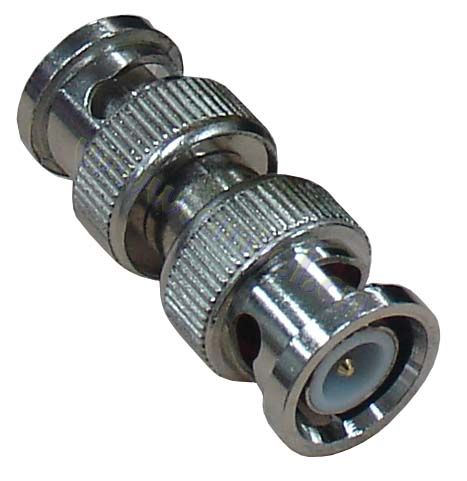

| Interface form | BNC、F、N |
| Protection form | Line to line, line to earth |
| Dimension | 88*25*25mm |
| working conditions | Temperature-25~+65℃；Humidity≤95%（25~30℃） |
| Test standard | IEC61643-21：2000 |
