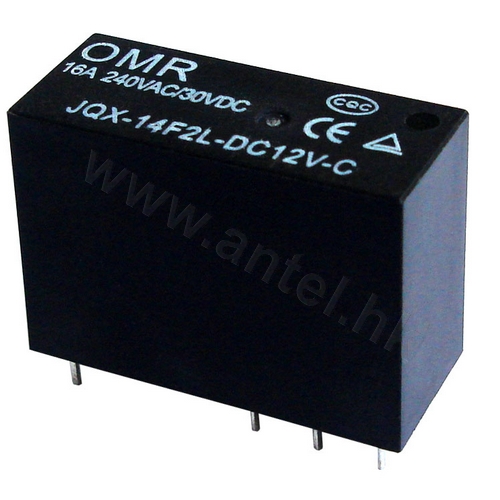

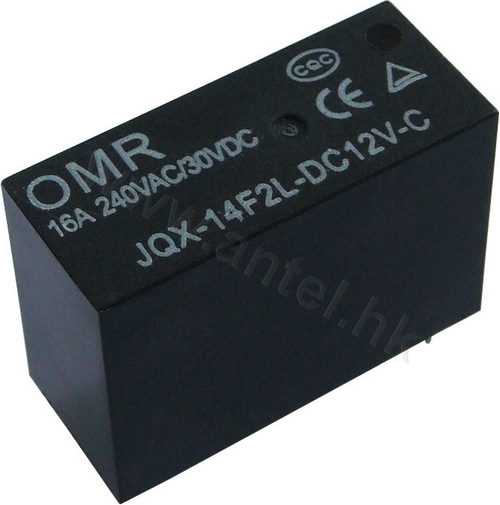

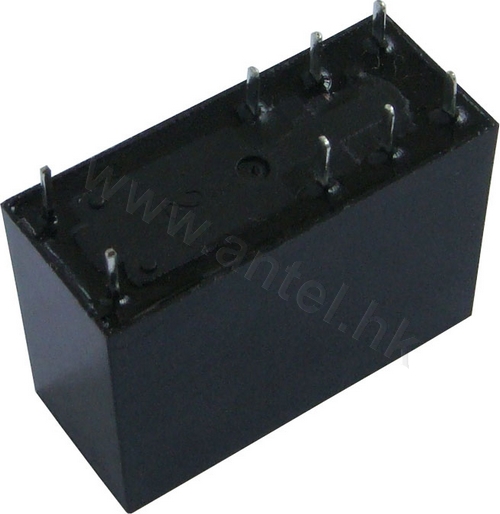

| Code: | JQX-14F2L-DC12V-C 8P |  |
| Name: | relay 8pin |
 |
Specifications:
| Art.No. | JQX-14F2L 8P |

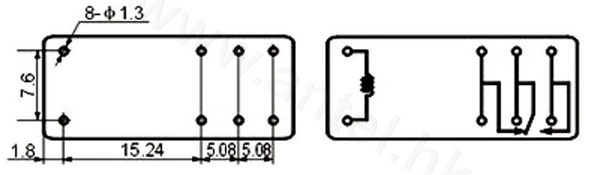

| Size | 29x12.6x20.6 |
| Contact Material | Ag Alloy |
| Contact Power | 16A 240VAC/16A 30VDC |
| Rated Voltage | 3~48VDC |
| Coil Power | 0.53W 0.72W |
| Alternative Code |
OMRON:G2R ZETTLER:AZ764 SONG CHUAN:845 OEG:OZ |
