| SP208 |
|
| DUAL 8 INCH LINE ARRAY |
| |
|
| FEATURES |
|
| ★ |
Ultra compact design,SPL up to 132dB / 1M |
| Horizontal dispersion 90° |
| ★ |
2 driven ways, Hi and left Mid driven by passive cross over, right Mid driven independently |
| ★ |
Russian birch wood cabinet |
| ★ |

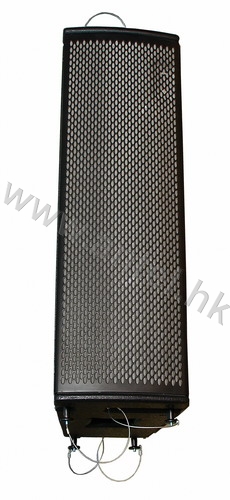

Waterproof perforated grill |
| ★ |
Smart,fast and safe rigging system for fixed installation and touring |
| |
|
| APPLICATIONS |
|
| ★ |
Theatre, arenas, concert hall, auditoria, club and church |
|
★
|
Live sound reinforcement |
| ★ |
Corporate Events |
| ★ |
Delay systems for large scale outdoor sound reinforcement |
| |
|
| SPECIFICATIONS |
| |
|
| HF |
2X1.76"compression driver, titanium diaphragm, Neodymium magnet, coupled with a constant directivity horn. Each unit: Impedance:8Ω Rated power:40W (AES) Max Power: 80W Sensitivity:110dB/1m1W |
| MF |
1X8"mid/low frequency speaker, 2" voice coil, Neodymium magnet, with phase stuff.Each unit: Impedance: 8Ω Rated Power: 200W (AES), Max Power: 400W, Sensitivity: 93dB/1m1W |
| LF |
1x8〞woofer, 2" voice coil, Neodymium magnet.Each unit: Impedance: 8Ω Rated Power: 200W (AES), Max Power: 400W, Sensitivity: 93dB/1m1W |
| Dimension(WxHxD) |
716mmx226mmx441mm |
| Enclosure |
Trapezoid shape, waterproof paint finish, with two handles |
| Weight |
21KG |
| Connector |

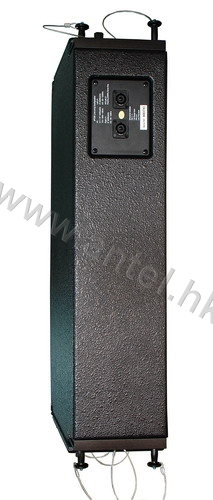

2x SPEAKON 4pole(input& parallel connection） |
| 1+&1-(High/mid),2+&2-(low） |
| Texture |
Russian birch plywood, waterproof big-spot paint |
| Handle: wooden handle on both sides |
| Grill: black iron grill attached a stainless thin grille to keep out of the corrosiveness of rain |
| Fittings |

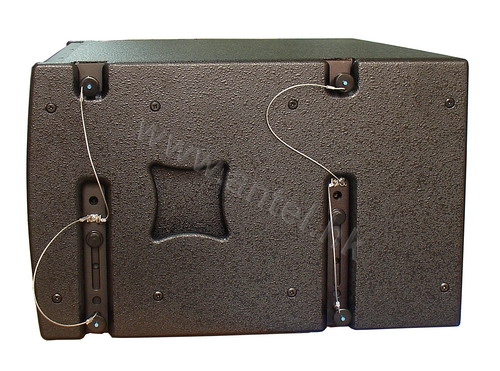

Flying points: heat treated aluminum, Front Fittings are fixed connection,and back fittings have several hole options for selection by angle from 0° to 10°With 1° |
| SYSTEM PARAMETER |
| Frequency Response |
80Hz-16kHz(±3dB) |
| Usable Frequency |
70Hz-18kHz(-10dB) |
| SPL |
124dB continuous , 132dB peak |
| Dispersion |
Horizontal 90°, vertical angle changed with the configuration of speakers |
| Power Rated(AES) |
HMF/LF: 200W/200W |
| Impedance/Sensitivity |
MF/HF Impedance:8Ω Sensitivity:110dB/1w@1m |
| LF Impedance: 8Ω Sensitivity:93dB/1w@1m |
