| Code: | CA+6 CA+9 CA+12 CA+18 CA+20 |  |

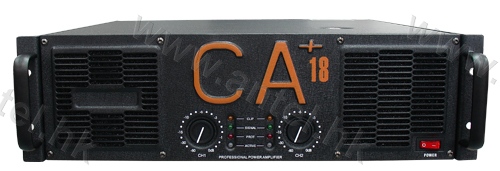

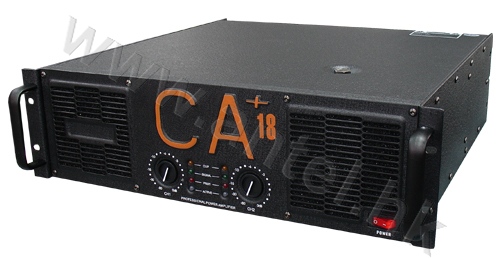

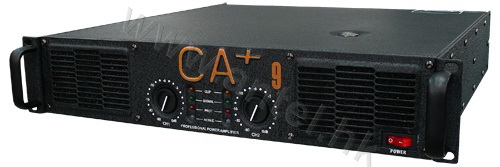

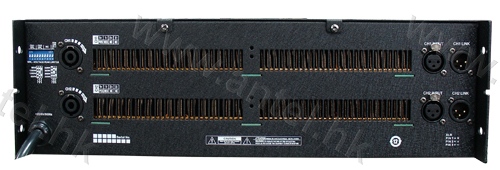

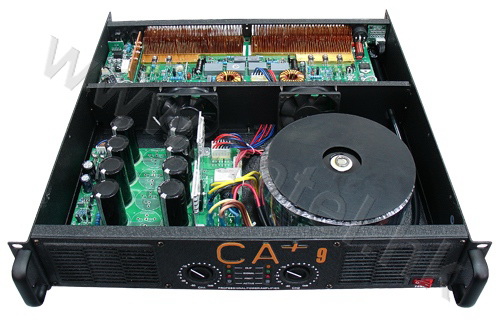

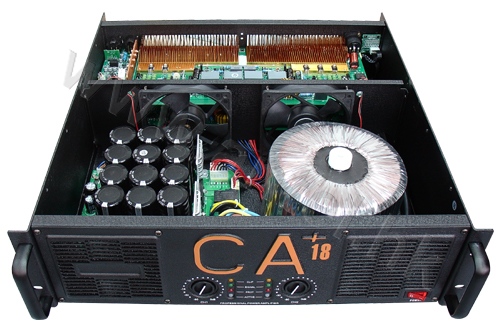

| Name: | Professional amplifier CA+ series |
 |
Features:
| ● High-tech energy-saving, environmental protection |
| ● Follow-up DC-DC converter |
| ● 2-3U standard steel machine case, aluminum front panel |
| ● New type aluminum heat sink |
| ● Super A class power output |
| ● SMT & AL production |
| ● Intelligent temperature control & variable cooling fan speed |
Specifications:
| MODEL | CA+6 | CA+9 | CA+12 | CA+18 | CA+20 | |
| All channels driven output power (THD=1%) | ||||||
| 8Ω output power | 400W | 600W | 850W | 1050W | 1300W | |
| 4Ω output power | 600W | 820W | 1300W | 1600W | 1950W | |
| 2Ω output power | 780W | 1050W | 1650W | 2100W | 2500W | |
| Frequency response (1W 80Ω) +0/-3dB | 10Hz~20KHz | 10Hz~20KHz | 10Hz~20KHz | 10Hz~20KHz | 10Hz~20KHz | 10Hz~20KHz |
| THD+N 20Hz-20KHz | <0.1% | <0.1% | <0.1% | <0.1% | <0.1% | |
| S/N rate | >80dB | >85dB | >90dB | >95dB | >100dB | |
| Damping factor | >350 | >350 | >350 | >350 | >350 | |
| Crosstalk | >70dB | >70dB | >70dB | >70dB | >70dB | |
| Input sensitivity | 0.775V | |||||
| Input impedance | balanced 20K/ unbalanced 10K | |||||
| Voltage gain (8Ω) | 35dB | 38dB | 39dB | 41dB | 42dB | |
| Output circuit | TD | |||||
| Cooling system | 2 fans, airflow is from front panel to rear panel, promise wind speed according to the temperature. | |||||
| Packing dimension (mm) | 610mm*575mm*170mm | 610mm*580mm*205mm | ||||
| G.W. | 19.5kg | 21kg | 25kg | 29.5kg | 32kg | |
| Power Supply | AC110V/50Hz-60Hz、AC220V/50Hz-60Hz、AC240V/50Hz-60Hz | |||||
