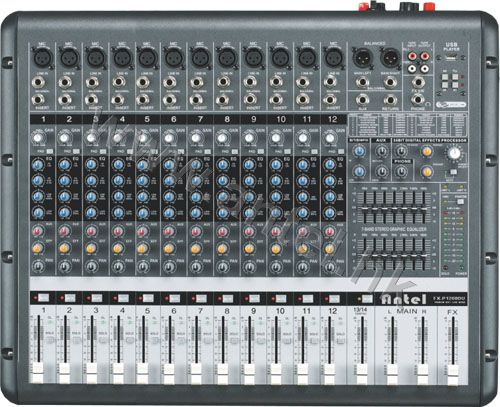

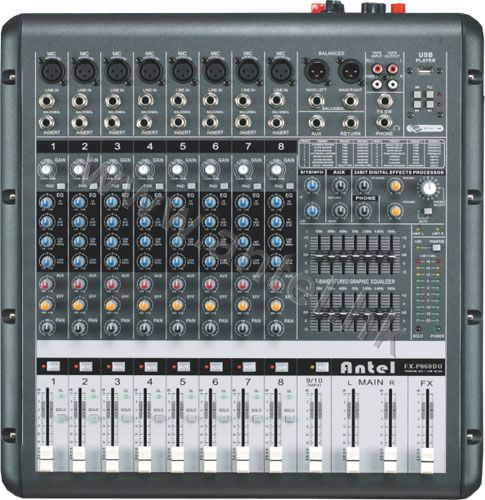

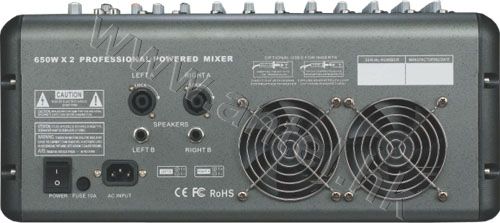

| Code: | FX-P860DU FX-P1260DU |  |
| Name: | Audio mixer FX series |
 |
Features:
● 8/12 channels
● 48V phantom power
● Dual 7-band graphic EQ for tuning mains or monitors
● 4-band active EQ for each channel
● 24Bit DSP digital effector
● Record and headphone monitor output
● Dual bands 10 digits LED level display
● PAN,EFF,MUTE and SOLO for each channel
● Built-in audio power amplifier
● ±20dB signal fluctuation switch
● 1 AUX send,1 AUX return
● Rugged steel chassis
● USB player
Specifications:
| Model | FX-P860DU | FX-P1260DU |
| Channel MIC/line | 8CH | 12CH |
| THD | ≤0.0001% | ≤0.0001% |
| Frequency Response | 20Hz-20kHz±5dB | 20Hz-20kHz±6dB |
| S/N Ratio | ≥89dB | ≥89dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-30dB | Mic-30dB |
| Line-21dB | Line-21dB | |
| Aux-22dB Tape-22dB | Aux-22dB Tape-22dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | Echo | Echo |
| Output Power | No | No |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
