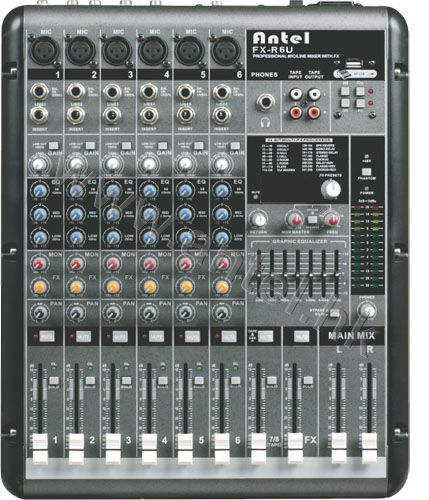

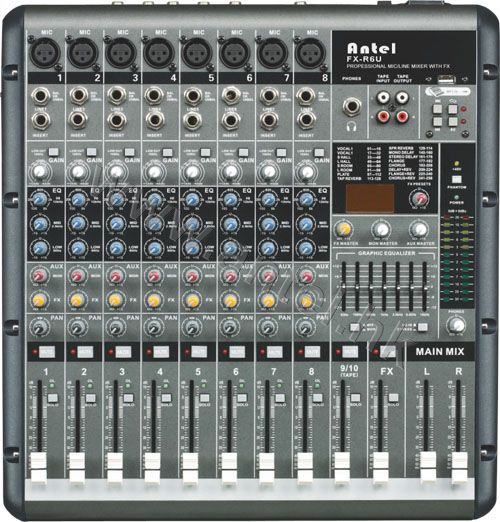

| Code: | FX-R6U FX-R8U |  |
| Name: | Audio mixer FX series |
 |
Features:
● Professional 6/8 channels compact mixer
● Precision 7-band graphic EQ for tuning mains or monitors
● 3-band active EQ for each channel
● 24Bit 256 DSP digital display effector
● Record and headphone monitor output
● Dual bands 12 digits LED level display
● PAN,SOLO,MUTE,FX and AUX solo on each channel
● 60mm faders for input channels, returns and Main/Monitor masters
● Insert,100Hz low cut filter, and 48V phantom power on all mic channels
● USB player
Specifications:
| Model | FX-R6U | FX-R8U |
| Channel MIC/line | 6CH | 8CH |
| THD | ≤0.0007% | ≤0.0007% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥90dB | ≥90dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-22dB | Mic-22dB |
| Line-22dB | Line-22dB | |
| Aux-22dB Tape-22dB | Aux-22dB Tape-22dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | 24 Bit 256 DSP | 24 Bit 256 DSP |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
