| Code: | PM-5306D PM-5306DU PM-8306D PM-8306DU |  |

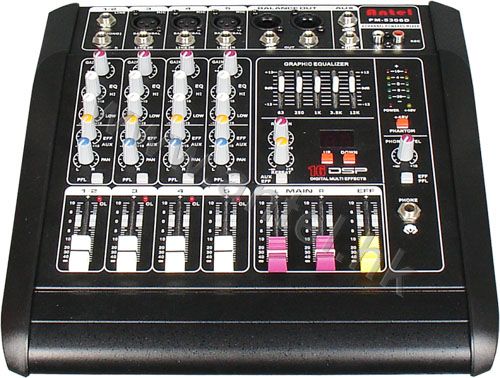

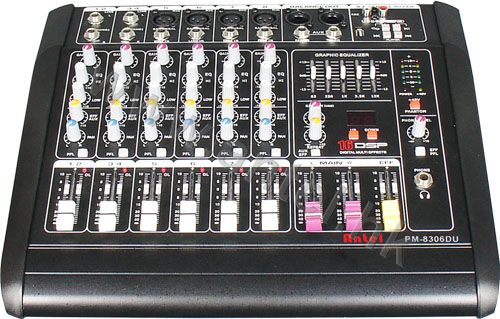

| Name: | Audio mixer PM series |
 |
Features:
● 5/8 channels
● 48V phantom power
● 5-band graphic equalizer
● 2-band EQ for each channel
● 16 DSP effector and digital display
● Record and headphone monitor output
● Dual bands 5 digits LED level display
● PAN,PFL and AUX for each channel
● Built-in audio power amplifier
● USB player optional
Specifications:
| Model | PM-5306D/PM-5306DU | PM-8306D/PM-8306DU |
| Channel MIC/line | 5CH | 8CH |
| THD | ≤0.05% | ≤0.05% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥105dB | ≥105dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB |
| Line-20dB | Line-20dB | |
| Aux-20dB Tape-20dB | Aux-20dB Tape-20dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | Echo | Echo |
| Output Power | 2*150W 8Ω | 2*150W 8Ω |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
