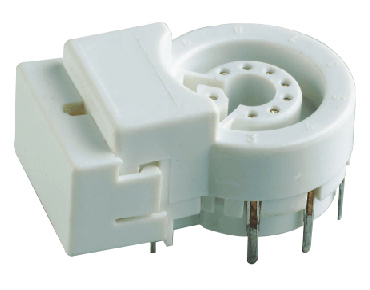

GZS8-6-1
Specification
Total insert force | ≤80N | Dielectric strength |
Between No.1 pin and adjacent pins(with key base):20kVDC. Between pin without spark-gap and adjacent pins(except ground pin):3kVDC. Between other adjacent pins(except ground pin):1.2kVDC |
Total withdrawal force | 25~80N | ||
Individual separating force | ≥0.85N | ||
Contact resistance | ≤0.02ohm | ||
Insulation resistance | ≥100000Mohm | ||
Initial discharge voltage | See table |
Table of Spark-gap position and initial discharge voltage
Code | A | B | C | D |
I.D.V of No.1 pin (focus)kVdc | 9~12 | 11~14 | 13.5~16 | 15~18 |
Code | I.D.V kVdc | ||||||
Pin No. | |||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | |
A | 1.2~2.3 | G.N.D | 1.2~2.3 | ||||
D | 1.2~2.3 | Without | G.N.D | 1.2~2.3 | |||
E | 1.2~2.3 | G.N.D | 1.2~2.3 | ||||
F | 1.2~2.0 | G.N.D | 1.2~2.0 |
