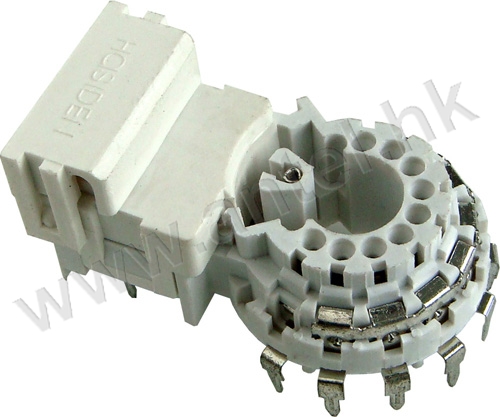

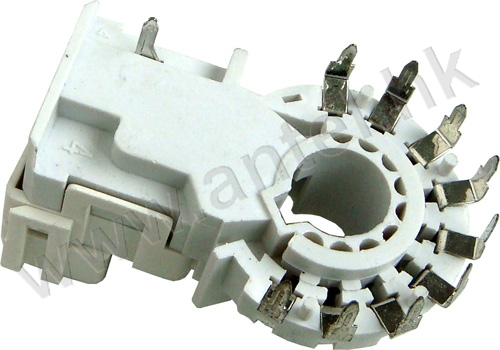

Specification
Total insert force | ≤90N | Dielectric strength |
Between No.1 pin and adjacent pins(with key base):20kVDC. Between pin without spark-gap and adjacent pins(except ground pin):3kVDC. Between other adjacent pins(except ground pin):1.2kVDC
|
Total withdrawal force | 27~80N | ||
Individual separating force | ≥0.85N | ||
Contact resistance | ≤0.02ohm | ||
Insulation resistance | ≥100000Mohm | ||
Initial discharge voltage | See table |
Table of Spark-gap position and initial discharge voltage
Code | A | B | C | D | E | F | G |
I.D.V of No.1 pin (focus)kVdc | 11~14 | 12~15 | 13~16 | 14~17 | 15~18 | 16~19 | 17~20 |
Code | I.D.V kVdc | ||||||||
Pin No. | |||||||||
4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
G | Without Pin | G.N.D | 1.2~2.3 | Without Pin | |||||
M | Without Pin | 1.2~2.3 | G.N.D | 1.2~2.3 | Without Pin | ||||
Q | Without Pin | 1.2~2.3 | Without Pin G.N.D | ||||||
S | Without Pin | 1.2~2.3 | 2.0~3.5 | 1.2~2.3 | Without Pin G.N.D |
