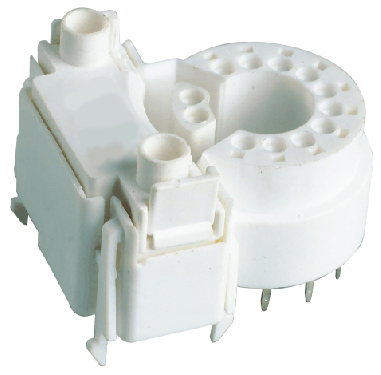

GZS10-301-3
Specification
Total insert force | ≤90N | Dielectric strength |
Between No.1 pin and adjacent No.12 pins(with key base):20kVDC. Between No.2 pin and adjacent No.5 pin (with key base ):20kVdc. Between No.1 pin and No.2 pin:3kVdc. Between pin without spark-gap and adjacent pins(except ground pin):3kVDC.
Between other adjacent pins(except ground pin):1.2kVDC
|
Total withdrawal force | 25~80N | ||
Individual separating force | ≥0.85N | ||
Contact resistance | ≤0.02ohm | ||
Insulation resistance | ≥100000Mohm | ||
Initial discharge voltage | See table | Focus cable |
Monowire or multiwire cable.Dimension of cable:see drawing Cable wire insertion force≤ 10N Cable wire extraction force≥40N |
Table of Spark-gap position and initial discharge voltage
Code | B | C | D | E | F | G |
I.D.V of No.1 pin (focus)kVdc | 12~15 | 13~16 | 14~17 | 15~18 | 16~19 | 17~20 |
Code | I.D.V kVdc | |||||||
Pin No. | ||||||||
5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
D | G.N.D | 1.0~2.3 | 1.2~2.4 | 1.0~2.3 | ||||
H | 1.0~2.3 | 1.2~2.4 | 1.0~2.3 | Without Pin G.N.D | ||||
J | 1.0~2.3 | 2.0~3.2 | 1.0~2.3 | Without Pin G.N.D | ||||
K | 1.0~2.3 | 1.2~2.4 | 1.0~2.3 | Without | 1.0~2.3 | Without Pin G.N.D |
